Splat Fighter

My friends and I were really into Tekken for a while, and we always played it in the same friend’s dorm room. At some point the obvious idea came up: turn his room into the arena, and let us break his furniture in it. A Gaussian splat can capture a room from a phone video, so the question was whether a splat could be a fighting game arena. Not a background image, the actual room: two fighters standing on its floor, half hidden behind its furniture, with the camera swinging around them when one of them sidesteps. The constraints I set myself were that it had to run in a normal browser at 60 fps, and that the room could be anything somebody films with their phone.

The idea

The game is a 2.5D fighter in the Tekken sense. Both fighters stand on a line, all the combat math is one-dimensional, and a tap up or down sidesteps around the opponent, which turns the line and the camera with it. The arena is a splat of a real place. You film a room, upload the video, and a GPU server turns it into an arena you can fight in and share with others. The furniture the pipeline recognises becomes props you can pick up and throw. And because a splat of a room is not much use without a fighter who fits into it, a few photos of a person can be turned into a rigged character as well.

That is the version that exists now. On day one the question was much smaller.

Does it even render

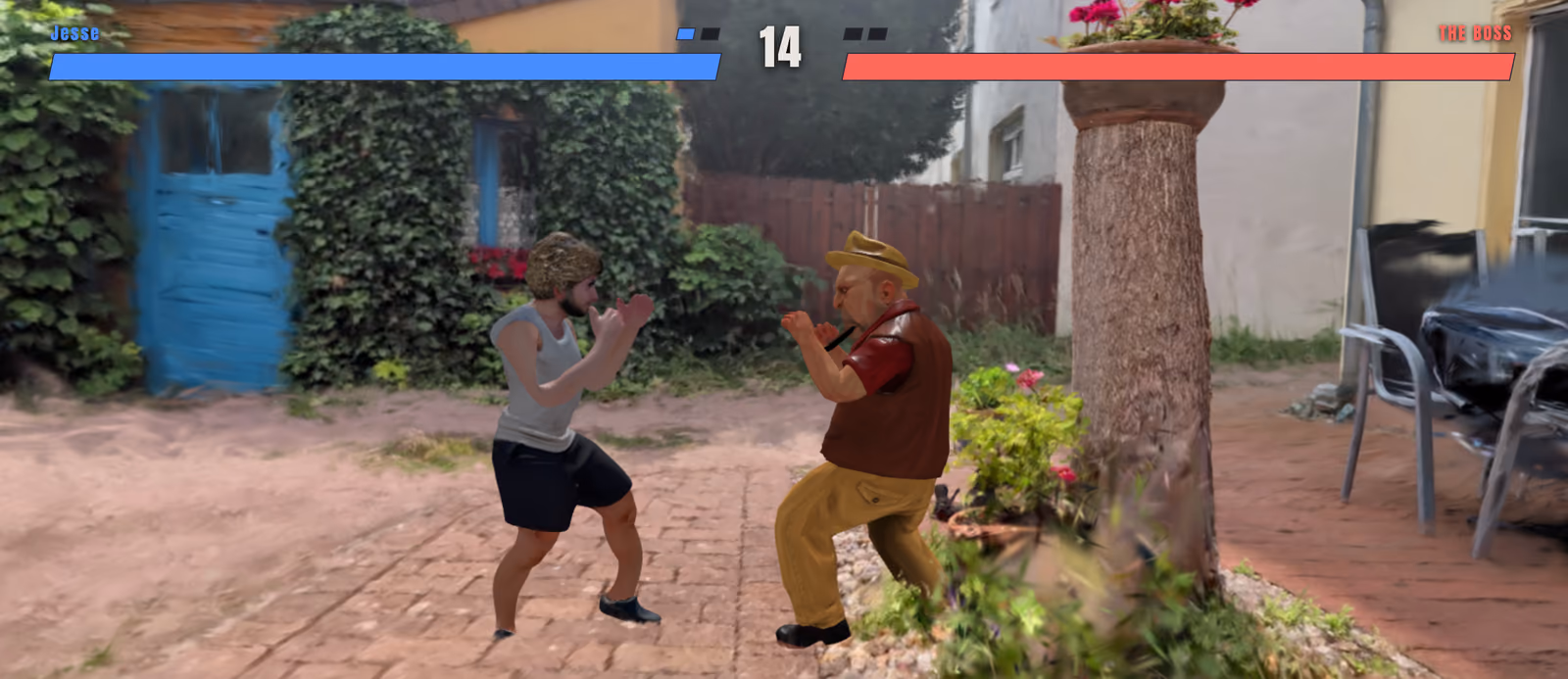

The first commit is a spike: load a raw, uncleaned 257 MB indoor scan into Spark on three.js, put two animated skinned characters into it, and measure. The gate I had written down was a p99 frame time of 20 ms with no long frames at all. It came in at 9.4 ms, on the worst asset the game would ever see. The real risk was depth: a splat is a cloud of translucent blobs sorted back to front, and I did not know whether a skinned mesh standing behind a foreground splat would actually be hidden by it, or float on top of everything like a sticker. It just worked. The meshes write depth and the splats respect it, and the fighter half behind the tree in the screenshot above is the proof.

The simulation

The combat core is a pure function. tick(state, inputs, config) takes plain data and returns plain data at 60 Hz, with a seeded random generator inside the state and nothing else. A tick costs 3.3 µs and the state is 682 bytes, and a test replays every match twice and compares the results. All the frame data lives in a JSON file per fighter, and no rule in the sim is keyed on a move’s name, not even the CPU opponent’s. It picks moves by properties like “is a low” or “is plus on block”, so every balance change I make to the JSON changes how the CPU plays without anybody telling it. The one place that needed real care was combo strings: a follow-up graph with a cycle in it is an infinite combo that no juggle cap can bound, so the loader refuses to parse one.

Netcode

Rollback netcode is the reason the sim was built that way. Once ticking is pure and the state is 682 bytes, rollback is just a driver: keep a ring of past states, schedule your own input three ticks into the future, predict the remote player by repeating their last input, and when a packet arrives that proves the prediction wrong, rewind to that tick and resimulate up to the present. Past 15 ticks it gives up and drops wall-clock time rather than banking it into a burst. Inputs go over a WebRTC data channel between the two browsers, and the server only does room codes and signaling.

The bug that cost the most time there was an ordering one. The signaling messages that set up the peer connection can arrive before this side has created its RTCPeerConnection, because the offer can beat the fetch for TURN credentials. Drop them and both players wait forever in a lobby that looks perfectly healthy. Queue them and everything works. Two browsers staring at each other with nothing wrong on either side is a very specific kind of debugging.

From a phone video to an arena

The reconstruction runs on a GPU server, one tool after the other: ffmpeg picks the sharpest frames, COLMAP solves the camera poses, nerfstudio trains the splat, and a cleanup step crops and compresses it. One capture takes about an hour. A gate after pose estimation rejects videos with no parallax before training starts, because a slow pan from one spot gives COLMAP nothing to triangulate and would produce an hour of GPU time and a puddle.

Then the room is taken apart. SAM 3 segments the extracted frames per concept, “chair” rather than “this chair”, and the masks are lifted onto the individual gaussians. A concept is then split into props by 3D connected components, so two chairs standing apart become chair_01 and chair_02, and two chairs touching become one wide chair. Every prop is a suggestion until a human accepts it in the arena editor.

What is not built is background inpainting. The scene is the room minus its props, so a prop that gets thrown reveals the hole it was cut from. Props are still fun to throw, and the hole is behind the person you threw it at.

The pipeline’s best bug was that every reconstructed room stood on its side. The floor estimator assumed captures come out with y pointing down, which is true of the sample scans I started with, and false of nerfstudio’s export, which puts up on +z. The floor plane ran along a wall, and every room a user uploaded was tilted by 90 degrees with the floor perpendicular to the ground. The fix was to stop assuming: the worker now reads gravity out of the camera poses, then fits the dominant floor plane and folds the residual tilt into the arena transform. On the real capture the result lands 1.3° from the arena I had tuned by hand, down from 27.8°.

Fighters from photos

A custom fighter is a skin. A few photos go through Hunyuan3D for the mesh and textures, a Blender cleanup, and then the base fighter’s skeleton is transplanted onto the mesh. The result carries no animations of its own. Clips are borrowed at load time from the base fighter, and the moveset is the base fighter’s, so the sim, the replays and the netcode cannot tell a custom fighter from its base. That is the whole reason the feature was cheap.

Every generation job died at 301 seconds. The two-hour timeout in the config looked innocent, but Node’s fetch enforces a 300 second headers timeout of its own, independently of any AbortSignal, and the generation service sends no headers until the whole pipeline is done, which takes about 314 seconds. I measured it rather than reasoned about it: a 310 second request dies at 301, a 4 second one does not. The worker then deleted the shared work directory while the service was still writing into it, so the error that actually surfaced was a missing input image, minutes downstream of the real failure, and the partial work a retry could have reused was gone with it.

Numbers

Calendar time	9 days, 24 July to 1 August
Commits	96
TypeScript and Python	~31,000 lines
Tests	~14,000 lines
p99 frame time on the raw scan	9.4 ms
One tick of the sim	3.3 µs

Most of the code was written together with Claude Code. The architecture docs, the adversarial review passes in the commit log and the test volume are what that looks like when it goes well; the 301 second timeout is what it looks like when it does not.

Where it stands

The game is live at splat-fighter.jesseguenzl.com. Local matches and the built-in arenas work without an account. Uploading a room or a fighter needs one, and signups wait for approval, because every upload is an hour of GPU time and a video of somebody’s living room. Desktop only: the game needs a keyboard or a gamepad, and a phone gets a screen saying so.

Still open: the inpainting, custom fighters in online matches, and capping the splat count during training so a large room does not produce an unpredictably large asset. None of them are blocking anybody from throwing a chair.
